A-frame Maxi 39 m²
£26,000
A frame cabin: Kit does not include interior finish or Rockwool insulation. For this type of building, customers often have their own ideas for finishing the interior, from plaster to finish boards imitating round timber. Rockwool is not included due to the high value per cubic meters.
Product Description
🏡 A-frame Maxi 39 m² – Modern Scandinavian A-frame Cabin (50.9 m²)
The A-frame Maxi 39 m² is a bright and modern Scandinavian-style cabin designed for comfort and relaxation.
Its full-glass A-shaped front, spacious living area and practical side module create an open, cozy atmosphere.
With a large sleeping loft and an 8 m² outdoor terrace, it is perfect for holiday stays, glamping resorts or comfortable year-round use.
✨ Key Features
- 🌲 Premium spruce or pine wood construction
- 🪟 Large full-glass A-frame front façade
- 🛏️ Cozy loft with 12.1 m² sleeping area
- 🛁 Fully functional bathroom and kitchen zone
- 🌅 8 m² terrace for outdoor relaxation
- 🏗️ Durable structural frame with optional insulation
- 🏕️ Ideal for glamping sites, resorts or private land
📐 A-frame Maxi 39 m² – Specifications Table
| Category | Specification |
|---|---|
| Model | A-frame 39 |
| Material | Spruce or pine wood |

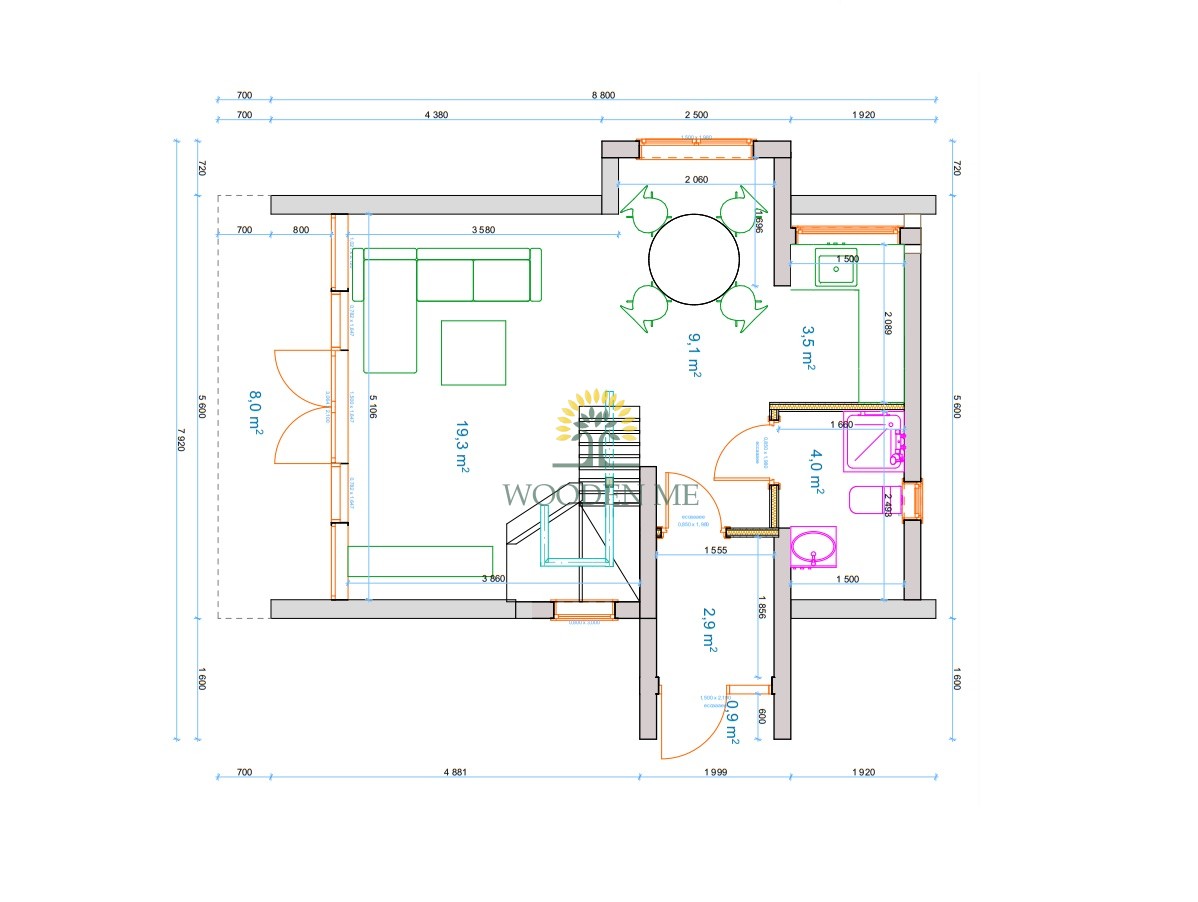

| Internal Area | 38.8 m² (ground floor) |
| Loft Area | 12.1 m² |
| Total Usable Area | 50.9 m² |
| External Dimensions (W × L) | 560 × 880 cm |
| Total Building Width | 792 cm (with roof overhang) |
| Total Height | 590 cm |
| Terrace | 8 m² |

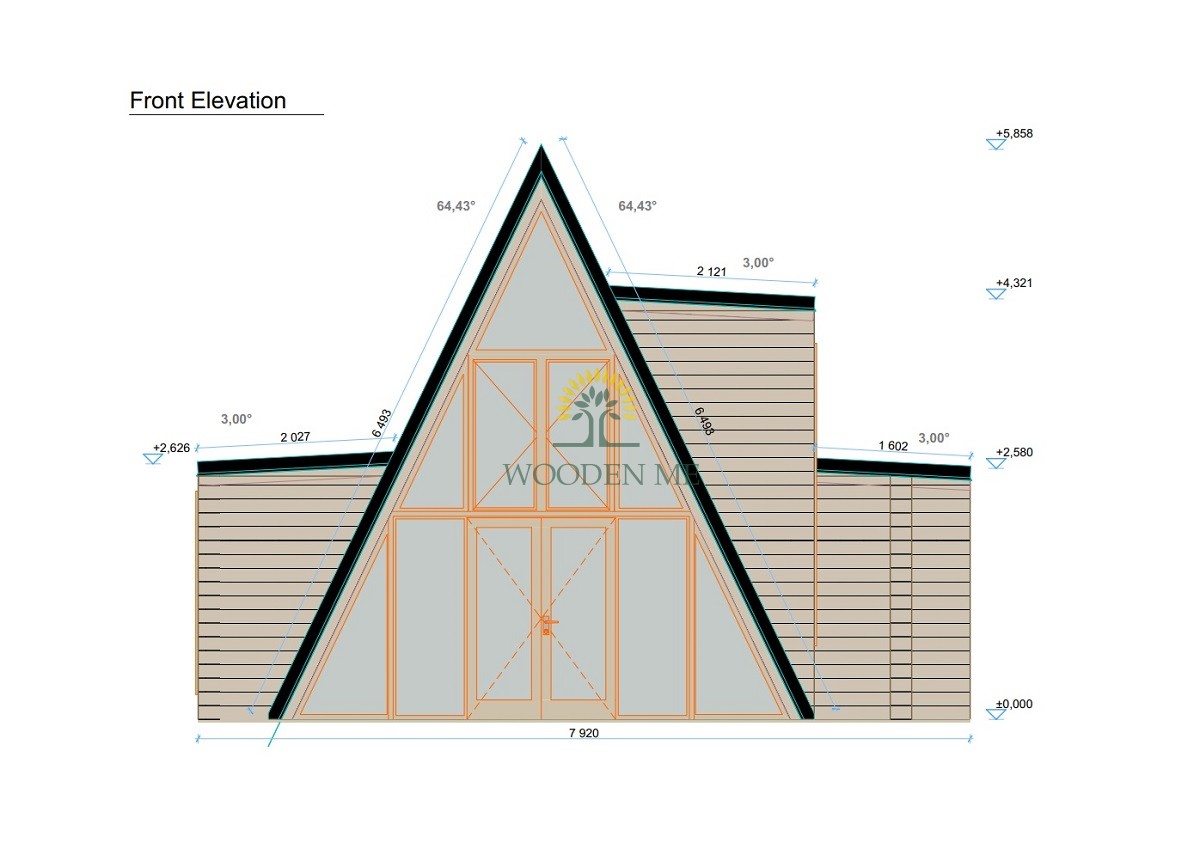

| Front Wall | Fully glazed A-frame wall |
| Wall Thickness (Frame) | 18.5 cm |
| External Cladding Boards | 19 mm |
| Air Gap Frame | 25 mm |
| Insulation Frame | 140 mm (Rockwool not included) |
| Roof Thickness (Frame) | 18 cm |
| Roof Sheathing (OSB) | 15 mm |
| Roof Area | 111 m² |
| Roof Pitch (Main A-frame) | 64.43° |
| Roof Pitch (Side Module) | 3° |
| Floor Structure | 10 cm supports + 19 mm floorboards |
| Doors – Main | 1 double glass door (1.85 × 1.60 m) |
| Doors – Internal | 2 single wooden doors (1.85 × 0.85 m) |
| Windows – Standard | 4 × (1.98 × 0.85 m) |
| Windows – Small | 2 × (1.98 × 0.50 m) |
| Windows – Vertical | 1 × (0.39 × 1.50 m) |
| Windows – Double | 1 double window |
| Windows – Triangular | 6 triangular A-frame windows |
| Front Façade Glazing | Multi-section full-height glass |
| Glazing Type | Double glazing (4 mm glass + 16 mm gap) |
| Roofing Material | Bitumen shingles (offered separately) |
| Security | Cylinder lock + 2 keys |
| Included in KIT | Structure, frame, floorboards, OSB, windows & doors (depending on package) |
🚚 Terms of Delivery
| 📍 | Free delivery is available to the South of England, East of England, and the London area. |
| 📦 | For other regions in the UK, Scotland, or Ireland, please inquire about the shipping price. |
| 🗺️ | Delivery to non-covered areas depends on the postcode and will be assessed individually. |
| 🚛 | We deliver using export trailers due to the size and distance involved. |
| ⚠️ | Lifting service is not available. Customers must organize unloading. |
| 💬 | If terminal delivery with unloading is required, please include this in your request. |
